CARAWATER AUTARX L

AUTARX allows you to not only process water from external sources, but it also allows you to reuse your otherwise single use grey water as a water source.
Turning 100 litres of fresh water into 800 to 1,000 litres of fresh water.

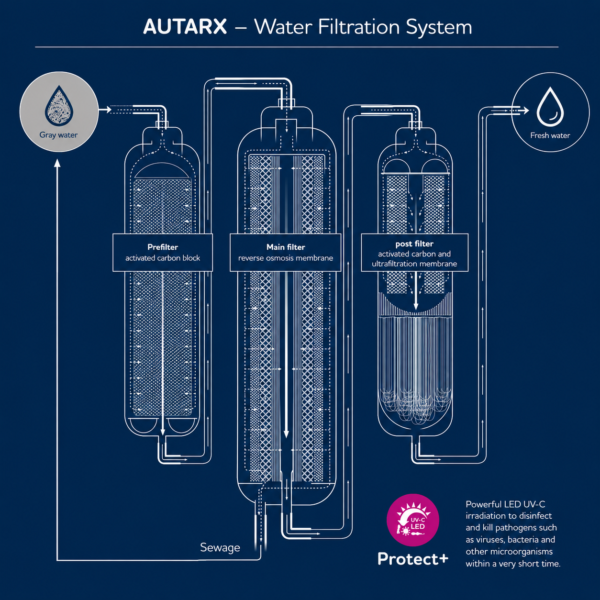

By arranging filter stages that become increasingly finer, the incoming water is processed. It’s like having your own mini waterworks on the go.

Stage One: Is an external 5″ sediment filter, which retains coarse contaminants. The transparent filter housing allows the degree of contamination to be visually identified, and the filter insert to be cleaned or replaced.

Stage Two: The next filtration takes place via an activated carbon block filter, the filtration rate here is already very high. As a result, around 99% of all free chlorine particles, chlorine-based solvents, hydrocarbon-based flavourings, as well as 85% of chlorine-based pesticides as well as multi-aromatic compounds, phenol, benzene and other organic substances with a size of more than 5-micron are filtered out of the water.

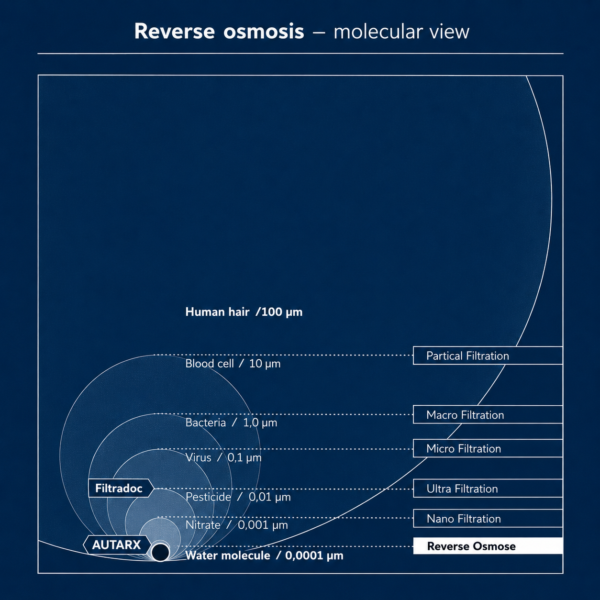

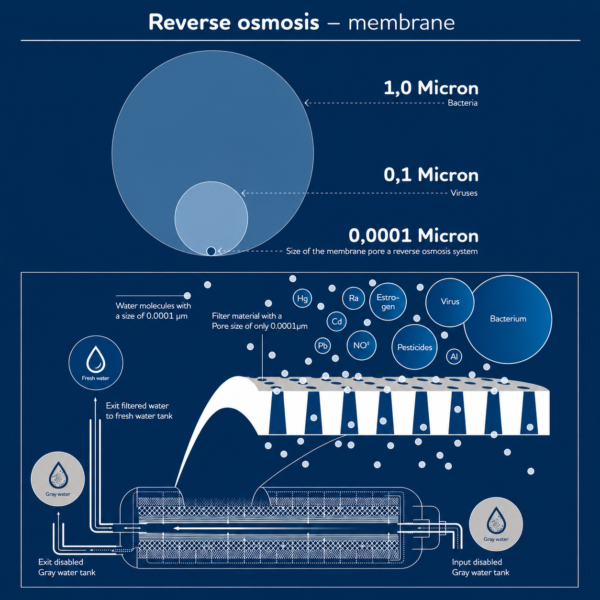

Stage Three: At the heart of the system is the high-performance, low-pressure reverse osmosis filter, with a filter pore size of 0.0001-microns, raw materials that are larger than a water molecule are retained and separated from the pure water. To extend the filter’s efficiency, the system includes a flushing process that washes the dirty side. This is not a backwashing function as the system is designed to only ever have pure processed water on the clean side of the filter which connects directly to the water tank.

Stage Four: The filtered pure water is passed through another activated carbon block filter.

Stage Five: To ensure maximum microbiological safety, a hollow fibre ultrafiltration membrane is the final filtration stage.

Stage Six: UV-C Disinfection via a powerful UV-C LED, deactivating harmful pathogens such as viruses, bacteria and other microorganisms on demand without chemicals before the fresh water is returned to your desired tank.

Processing is managed by a in line timer tat runs pre programmed cycle times to protect the pressure pump from over heating.

Flushing is managed via manual valves and connection to the pressurised fresh water system.

The flowmeter included in the scope of delivery visualizes the amount of water processed for managing each tanks capacity and filter set life.

Depending on the model and contamination levels, the filters require replacing after 8,000 to 10,000 litres

AUTARX is available with either 12V or 24V pumps to best suit your individual installation along with the required tank bulkhead connections, push-fit connections and pipes.

This technology creates a cycle that allows you to enjoy your freedom for a longer period, independent of the fresh water supply.

AUTARX AUTOMATION is available to automat processing and flushing functions.

PRODUCT DETAILS

Six Stage Process
1^st stage: 5″ sediment filter for sand, rust, sludge and coarse particles
2^nd stage: activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3^rd stage: high-performance, low-pressure reverse osmosis filter, with a filter pore size of 0.0001-microns
4^th activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and
5^th stage: ultrafiltration membrane 99.9999% reduction of bacteria, E. Coli bacteria, legionella
6^th stage: UV-C Deactivating harmful pathogens such as viruses, bacteria and other microorganisms

PRODUCT SPECIFICATIONS

• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Flow Rate: up to 60 L/ph.
• Dimensions: AUTARX RO Filter Box 41.5 x 22.5 x 14 cm
• Weight: 12 kg
• Filter Life: up to 8,000 to 10,000 litres depending on the degree of contamination

SCOPE OF DELIVERY

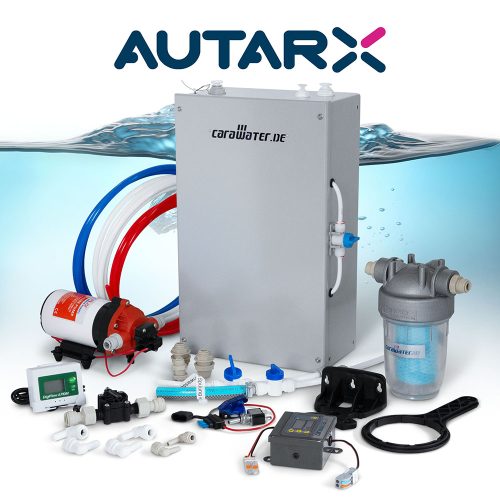

AUTARX RO Filter box, 5″ Sediment prefilter, 12V or 24V pressure pump, Flowmeter, Connection material including tank bulkhead fittings and pipe.

ADDITIONAL INFORMATION

Quality 5” Polypropylene Filter Housing

• German Engineered / Made in Europe
• Three-piece housing for easy opening and closing with supplied tool
• Installation size 18 x 12 x 22cm
• Weight 1.15kg
• Microban® Antibacterial coating
• Clear sump for filter monitoring

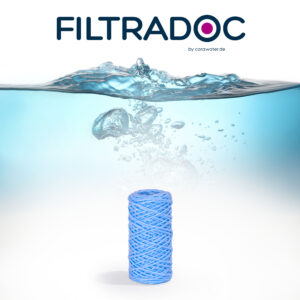

5” Washable Sediment Filter

• German Engineered
• 2-micron filtration removes sand, rust, mud and course organic and inorganic particles.
• Consists of wrapped polypropylene and Microfield silver thread to protect filter media against bacteria and biofilms
• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Flow Rate: up to 35 L/pm. (at 3bar pressure)
• Dimensions: 10 (25.4cm) x Ø 6.1cm
• Weight: 160g
• Filter Life: up to 12 months depending on the degree of contamination

 Carawater 12V or 24V Pump

• Multi Chamber diaphragm pump
• Positive displacement
• Automatic pressure-controlled switching
• Self-priming
• Run dry protected

Activated Carbon Antibacterial Filter

• German Engineered
• Eliminating chemical compounds, heavy metals, hormones, and drug residues
• Removes unpleasant odours and tastes from the filtered water
• Filter Medium: 100% natural coconut shell carbon
• Microfield Mesh to protect filter media against bacteria and biofilms
• Certification: NSF Certified

0.0001-micron Low Pressure Reverse Osmosis Filter

• German Engineered
• 0001-micron filtration allowing only fresh water to pass through
• Microfield Mesh to protect filter media against bacteria and biofilms
• Certification: NSF Certified

0.02-micron Hollow Fiber Membrane Ultra Filtration Filter

• German Engineered
• 02-micron filtration provides a 99.9999% reduction in germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules.
• Microfield Mesh to protect filter media against bacteria and biofilms
• Certification: NSF Certified

UV-C LED Filtration

• Optimum wavelength 265nm UV-C LED filtration
• Deactivating harmful pathogens such as viruses, bacteria and other microorganisms on demand without chemicals

BENEFITS

• Compatible with a variety of connections allowing for integration into your filtration system
• Eliminates chemical compounds, heavy metals, hormones, and drug residues
• Unpleasant odours and tastes removed from the filtered water.
• 0.0001-micron filtration allowing only fresh pure water to pass through
• Optimum wavelength 265nm UV-C LED filtration
• Microban® Antibacterial coating to filter housings
• Microfield Mesh to protect filter media against bacteria and biofilms
• Regenerate on board grey water into reusable fresh service water up to 10 times
• Reduce the space and weight designated to grey water storage.

We offer a wide range of accessories that can be added to this product to make purifying water while travelling as easy as possible.
