CARAWATER PROTECT+ UV-C LED 8L/pm

UV-C LED (8 L/pm)

2 x 200mW high-performance UV-C LEDs from Stanley Electric, Automotive compliant manufacturing / certification (AEC-Q102)

Constant, efficient wavelength of 265nm over the entire lifetime 10,000 operating hours with unlimited switching cycles.

PRODUCT DETAILS

UV-C LED (8 L/pm)

2 x 200mW high-performance UV-C LEDs from Stanley Electric
Automotive compliant manufacturing / certification (AEC-Q102)
Constant, efficient wavelength of 265nm over the entire lifetime
10,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency

12V, 24V options available

PRODUCT SPECIFICATIONS

UV-C LED (8 L/pm)

• UV Dose 10 @ 6L/pm, 22 @ 2.3L/pm, 40 @ 1.2L/pm
• Operating time up to 10,000 hours
• Flow rate 0.5 to 8 L/pm (at 3bar pressure)
• Internally water cooled
• Power Consumption: 6.8w
• Max Water Pressure: 8bar
• Temperature resistant: 4°C to 40°C
• Dimensions: 24cm x 10cm x 12cm (L x W x H)
• Weight: 970g dry
• Weight: 1,020g
• Temperature resistant: 4°C to 40°C
• IP Rating: IP65
• Fittings: 10mm to 12mm

SCOPE OF DELIVERY

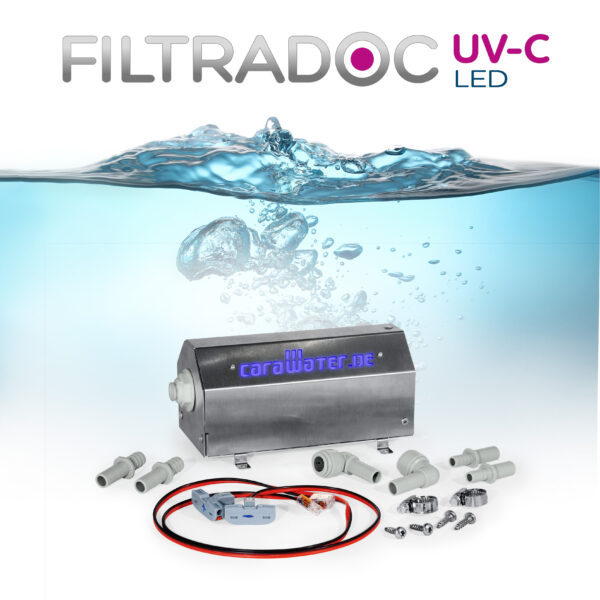

UV-C LED (8 L/pm), Stainless steel housing, 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 2 x adapter cables for power supply, 2 x stainless steel hose clamps, 4 x fastening screws.

ADDITIONAL INFORMATION

• German Engineered
• Certification: NSF Certified
• Temperature resistant: up to 40°C

BENEFITS

• Flow Rate: up to 8 L/pm
• 80,000 litre capacity
• Water disinfection – 100% chemical free
• Disinfection rates of up to 99.999%
• Environmentally friendly – no harmful disinfection by products
• Maintenance free
• 10,000 hours operation
• Unlimited switching cycles
• No lamp replacement requirements
• Low power consumption

Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.
