CARAWATER FILTRADOC PRE SPEED – TRIO V3 10“ (Sediment, Activated Carbon, Limescale Reduction and Ultrafiltration Membrane Filter)

Triple three-piece filter housing made of quality polypropylene can be permanently fitted in a campervan, caravan, motorhome, expedition vehicle or 4×4 or to the FILTRADOC PRE SPEED STAND for external use. The unit comes with a wall bracket for quick and straight forward installation. The clear sumps are treated with Microban antibacterial coating and allow for easy monitoring of filter contamination and performance.

The 10″ Carawater Combination 1-micron Sediment Activated Carbon Antibacterial filter consists of melt blown polypropylene thread combined with activated carbon to protect against bacteria and biofilm whilst capturing sand, rust, mud and course organic and in organic particles. The filter is made with 100% natural coconut shell carbon. Eliminating chemical compounds, heavy metals, hormones, drug residues, unpleasant odours and tastes from the filtered water

The 10″ Carawater Limescale filter reduces the hardness of the filtered water protecting your water lines, tanks, components and appliances

The 10” Carawater 0.02-micron Hollow Fiber Membrane Ultrafiltration provides a 99.9999% reduction in germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules from water.

PRODUCT DETAILS

Four Filter Stages

1st stage:  combined 10″sediment filter for sand, rust, sludge and coarse particles
2nd stage: combined 10″ activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3rd stage: 10″ limescale reduction through polyphosphate granulate
4th stage: 10″ ultrafiltration membrane 99.9999% reduction of bacteria, E.Coli bacteria, legionella

PRODUCT SPECIFICATIONS

• Height: 33 cm
• Installation dimensions: 40.5 x 12 x 35 cm
• Capacity: Up to 15,000 litres
• Flow Rate: up to 20 L/pm. (at 3bar pressure)
• Weight: 3.15kg

SCOPE OF DELIVERY

Combination Sediment + Activated Carbon Filter, Lime Reduction (Water Softening) Filter, Ultrafiltration Membrane, Filter Container, Gardena Connections, Tightening Tool, Wall Bracket

ADDITIONAL INFORMATION

Quality Polypropylene Filter Housing

• Three-piece twin canister housings, easy opening and closing with supplied tool
• Installation size 29.5 x 12 x 33cm
• Durable ½ inch Gardena brass connections
• Weight 3.15kg
• Microban® Antibacterial coating
• Clear sumps for filter monitoring
• German Engineered / Made in Europe

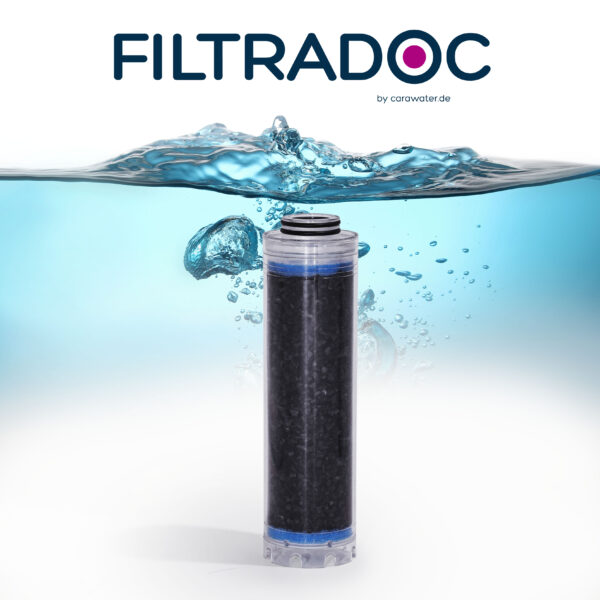

 10” Combination 1-micron Sediment Activated Carbon Antibacterial Filter

• 1-micron filtration removes sand, rust, mud and course organic and in organic particles.
• Eliminating chemical compounds, heavy metals, hormones, and drug residues
• Removes unpleasant odours and tastes from the filtered water
• Consists of melt blown polypropylene and 100% natural coconut shell carbon
• Microfield Mesh to protect filter media against bacteria and biofilms
• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Flow Rate: up to 25 L/pm. (at 3bar pressure)
• Dimensions: 10″ (25cm) x Ø 6.1cm
• Weight: 160g
• Temperature resistant: up to 80°C
• Filter Life: up to 20,000 litres, depending on water contamination

10″ Lime Reduction (Water Softening) Filter

• Dimensions: length 25.2 cm x Ø 7.0 cm
• Filter medium: polyphosphate crystals. Reduces the lime content
• Flow rate max: 20 L /min. (at approx. 3 bar pressure)
• Net total weight: 850 g
• Content of polyphosphate crystals: 700 g
• Capacity: 20,000 litres. Depending on water hardness
• Certification: NSF Certified

10” 0.02-micron Hollow Fiber Membrane Ultrafiltration Filter

• 0.02-micron filtration provides a 99.9999% reduction in germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules.
• Consists of the finest hollow fibers with 2.5sqm of filtration surface
• Microfield Mesh to protect filter media against bacteria and biofilms
• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Flow Rate: up to 30 L/pm. (at 3bar pressure)
• Dimensions: 10″ (25.4cm) x Ø 6.1cm
• Weight: 220g
• Service Life: up to 30,000 litres, depending on the degree of contamination

BENEFITS

Compatible with a variety of connections allowing for integration into your filtration system
Easy opening and closing with supplied tool
Eliminates chemical compounds, heavy metals, hormones, and drug residues
Unpleasant odours and tastes removed from the filtered water.
Reduces soluble lead and copper in fresh water
Prevents or retards scale build up in water lines and components
99.9999% reduction in germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules.
Microban® Antibacterial coating to housing
Microfield Mesh to protect filter media against bacteria and biofilms
Flow Rate: up to 20 L/pm to fill freshwater tanks

APPLICATIONS

• Pre filtration filter for fresh service and potable water from city water supply.
• Pre filtration filter for fresh service and potable water from off grid supply. Note this version includes a charcoal filtration stage recommended for filtering potable water.

Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.

We offer a wide range of accessories that can be added to this product to make purifying water while travelling as easy as possible.
