CARAWATER FILTRADOC PROTECT+ UV-C LED 3L/pm + FILTRADOC M (Mineral+)
Perfect solution for treating water produced via (RO) Reverse Osmosis
FILTRADOC M (Mineral+)
1st stage: Sediment filtration
2nd stage: Activated carbon filtration
3rd stage: Mineralisation and Revitalisation pH8+
UV-C LED (Mini)
99.99% Effective Disinfection
UV-C Dose 40mj (potable water standard) @ 3 L/pm
Point of use or central drinking water filtration
- Compact size
- Flow rate up to 3 L/pm
- High capacity 6,000 litre filter
Price range: AU$1,360.00 through AU$1,450.00 +10% GST Australia / +15% GST New Zealand
- Free shipping on all orders Australia wide.
- Due to high demand Carawater dispatch may take 14 days
UV-C LED (Mini)
160mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime > 8,000 operating hours with unlimited switching cycles.
FILTRADOC M (Mineral+)
The filter head is equipped with an AQUASTOP at the water inlet. This allows for a change of filter without having to interrupt the mains’ water supply. The filter can be changed by turning the filter 1/3rd of a turn inside of the filter head. Three sealing stages ensure permanent sealing.
The 2-micron sediment filtration stage consists of polypropylene thread and Microfield silver thread to protect against bacteria and biofilm whilst capturing sand, rust, mud and course particles.
The 0.5-micron activated carbon antibacterial filtration stage is made with 100% natural coconut shell carbon. Eliminating chemical compounds, heavy metals, hormones, and drug residues. The activated carbon also removes unpleasant odours and tastes from the filtered water.
Mineral + stage introduces selected minerals such as magnesium, calcium and other trace elements to restore the water’s natural vitality.
pH + stage, the water is made alkaline by the pH + granules. The pH value can be increased up to 8pH. The water counteracts acidification of the human body.
PRODUCT DETAILS
UV-C LED (Mini)
160mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime
> 8,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency
On Demand on/off automatic switching via internal flow switch
12V, 24V & 240V options available
FILTRADOC M (Mineral+)
Three Filter Stages
1st stage: Sediment filter for sand, rust and coarse particles
2nd stage: Activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3rd stage: Mineralisation with calcium, magnesium, sodium and potassium. Revitalisation pH8+
PRODUCT SPECIFICATIONS
UV-C LED (Mini)
- UV Dose 40mj @ 3 L/pm
- Operating time up to >8,000 hours
- Flow rate 0.5 to 3 L/pm (at 3bar pressure)
- Internally water cooled
- Max Water Pressure: 3bar
- Temperature resistant: 4°C to 40°C
- Dimensions: 15cm x Ø 3cm
- Weight: 87g dry
- Temperature resistant: 4°C to 40°C
- Fittings: 10mm to 12mm
FILTRADOC M (Mineral+)
- Dimensions: 30cm x Ø 8cm
- Installation Dimensions: 35cm x Ø 8cm
- Capacity: Up to 6,000 litres
- Flow Rate: up to 4 L/pm. (at 3bar pressure)
- Weight 750g

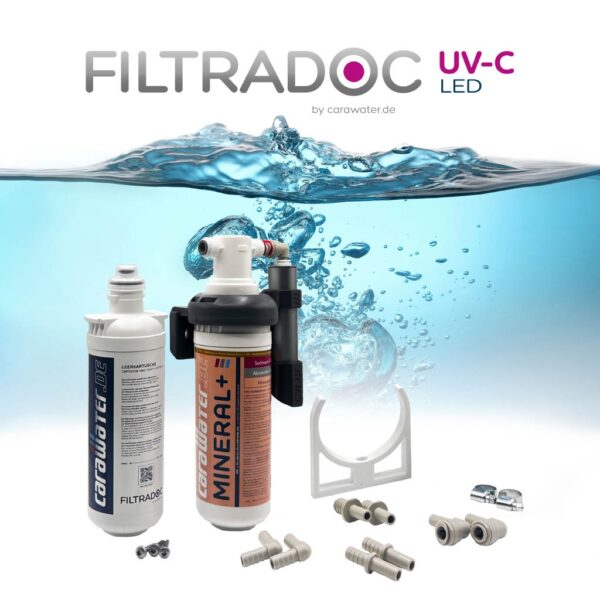

SCOPE OF DELIVERY
UV-C LED Reactor (Mini), Lightweight plastic housing, 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 1 x adapter cable for power supply, 2 x stainless steel hose clamps, 3 x fastening screws.
FILTRADOC M (Mineral+) with AQUASTOP filter head, filter holder, another empty cartridge for disinfection
ADDITIONAL INFORMATION
- German Engineered
- Easy opening and closing for filter replacement
- Certification: NSF Certified
- Temperature resistant: up to 40°C
- Filter Life: up to 6,000 litres, depending on the degree of contamination
BENEFITS
- Easy opening and closing for filter replacement with AQUASTOP HEAD
- Removes sand, rust, mud and course organic and in organic particles.
- Eliminates chemical compounds, heavy metals, hormones, and drug residues
- Unpleasant odours and tastes removed from the filtered water.
- Introduces selected minerals such as magnesium, calcium and other trace elements
- Increased alkalinity counteracts acidification of the human body
- Microban® Antibacterial coating to housing
- Microfield Mesh to protect filter media against bacteria and biofilms
- Flow Rate: up to 3 L/pm
- Filter Life: up to 6,000 litres, depending on the degree of contamination with no time restriction
- Water disinfection – 100% chemical free
- Disinfection rates of up to 99.99%
- Environmentally friendly – no harmful disinfection by products
- Maintenance free
- >8,000 hours operation
- Unlimited switching cycles
- No lamp replacement requirements
- Low power consumption
Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.
| Weight | 4 kg |
|---|---|
| Dimensions | 40 × 30 × 10 cm |
| Power (select required option) | 12V / 24V, 240V |
