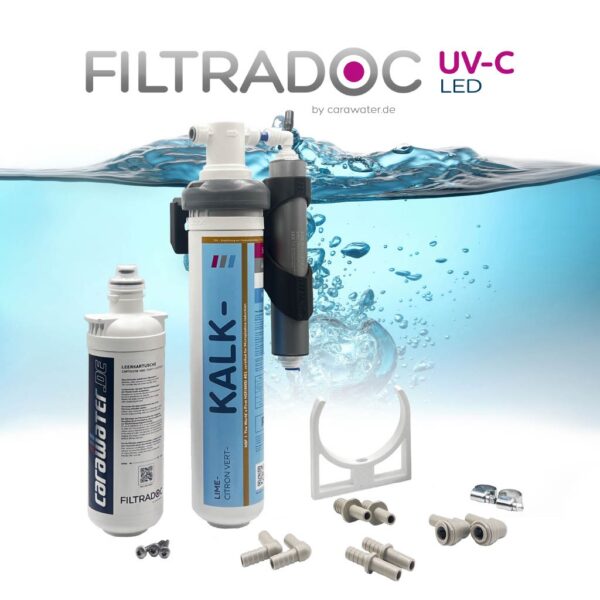

CARAWATER FILTRADOC PROTECT+ UV-C LED 6L/pm + FILTRADOC L (Limescale Removal)
FILTRADOC L (Limescale Removal)
99.99% Effective Filtration
UV-C LED (Midi)
99.99% Effective Disinfection
UV-C Dose 40mj (potable water standard) @ 6 L/pm
Point of use or central fresh and drinking water filtration
- Compact size,
- Flow rate up to 6 L/pm
- High capacity 60,000 litre filter.
Price range: AU$2,550.00 through AU$2,625.00 +10% GST Australia / +15% GST New Zealand
- Free shipping on all orders Australia wide.
- Due to high demand Carawater dispatch may take 14 days
UV-C LED (Midi)
240 mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime > 8,000 operating hours with unlimited switching cycles.
FILTRADOC L (Limescale Removal)
The filter head is equipped with an AQUASTOP at the water inlet. This allows for a change of filter without having to interrupt the mains’ water supply. The filter can be changed by turning the filter 1/3rd of a turn inside of the filter head. Three sealing stages ensure permanent sealing.
The 2-micron sediment filtration stage consists of polypropylene thread and Microfield silver thread to protect against bacteria and biofilm whilst capturing sand, rust, mud and course particles.
The 0.5-micron activated carbon antibacterial filtration stage is made with 100% natural coconut shell carbon. Eliminating chemical compounds, heavy metals, hormones, and drug residues. The activated carbon also removes unpleasant odours and tastes from the filtered water.
The 0.1-micron Hollow Fiber Membrane Ultra Filtration stage provides a 99.99% reduction in germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules from water.
The Limescale polyphosphate crystals reduces the hardness of the filtered water protecting your water lines, tanks, components and appliances
PRODUCT DETAILS
UV-C LED (Midi)
240 mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime
> 8,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency
On Demand on/off automatic switching via internal flow switch
12V, 24V & 240V options available
FILTRADOC L (Limescale Removal)
Four Filter Stages
1st stage: Sediment filter for sand, rust and coarse particles
2nd stage: Activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3rd stage: Ultrafiltration membrane, 99.99% reduction of bacteria, germs and viruses
4th stage: Limescale reduction through polyphosphate granulate
PRODUCT SPECIFICATIONS
UV-C LED (Midi)
- UV Dose 40mj @ 6 L/pm
- Operating time up to >8,000 hours
- Flow rate 0.5 to 3 L/pm (at 3bar pressure)
- Internally water cooled
- Max Water Pressure: 3bar
- Temperature resistant: 4°C to 40°C
- Dimensions: 24cm x Ø 4cm
- Weight: 179g dry
- Temperature resistant: 4°C to 40°C
- Fittings: 10mm to 12mm
FILTRADOC L (Limescale Removal)
- Two-piece housing including filter head equipped with AQUASTOP
- Dimensions: 41cm x Ø 8cm
- Installation Dimensions: 45cm x Ø 8cm
- Flow Rate: up to 9.5 L/pm. (at 3bar pressure)
- Weight 1,150g
- Filter Life: up to 60,000 litres, depending on the degree of contamination with no time restriction
SCOPE OF DELIVERY
UV-C (Midi), Lightweight plastic housing, 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 2 x adapter cables for power supply, 2 x stainless steel hose clamps, 3 x fastening screws.
FILTRADOC L (Limescale Removal) with AQUASTOP filter head, filter holder, another empty cartridge for disinfection
ADDITIONAL INFORMATION
- German Engineered
- Easy opening and closing for filter replacement
- Certification: NSF Certified
- Temperature resistant: up to 40°C
- Filter Life: up to 60,000 litres, depending on the degree of contamination
BENEFITS
- Easy opening and closing for filter replacement with AQUASTOP HEAD
- Removes sand, rust, mud and course organic and in organic particles.
- Eliminates chemical compounds, heavy metals, hormones, and drug residues
- Unpleasant odours and tastes removed from the filtered water.
- Introduces selected minerals such as magnesium, calcium and other trace elements
- Increased alkalinity counteracts acidification of the human body
- Microban® Antibacterial coating to housing
- Microfield Mesh to protect filter media against bacteria and biofilms
- Flow Rate: up to 6 L/pm
- Filter Life: up to 60,000 litres, depending on the degree of contamination with no time restriction
- Water disinfection – 100% chemical free
- Disinfection rates of up to 99.99%
- Environmentally friendly – no harmful disinfection by products
- Maintenance free
- >8,000 hours operation
- Unlimited switching cycles
- No lamp replacement requirements
- Low power consumption
Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.
| Weight | 5 kg |
|---|---|
| Dimensions | 45 × 30 × 10 cm |
| Power (select required option) | 12V / 24V, 240V |
