CARAWATER PROTECT+ UV-C LED 3L/pm

UV-C LED (Mini)

160mW high-performance UV-C LEDs

Constant, efficient wavelength of 265nm over the entire lifetime > 8,000 operating hours with unlimited switching cycles.

PRODUCT DETAILS

UV-C LED (Mini)

160mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime
> 8,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency
On Demand on/off automatic switching via internal flow switch

12V, 24V  & 240V options available

PRODUCT SPECIFICATIONS

UV-C LED (Mini)

• UV Dose  40mj @ 3 L/pm
• Operating time up to >8,000 hours
• Flow rate 0.5 to 3 L/pm (at 3bar pressure)
• Internally water cooled
• Max Water Pressure: 3bar
• Temperature resistant: 4°C to 40°C
• Dimensions: 15cm x Ø 3cm
• Weight: 87g dry
• Temperature resistant: 4°C to 40°C
• Fittings: 10mm to 12mm

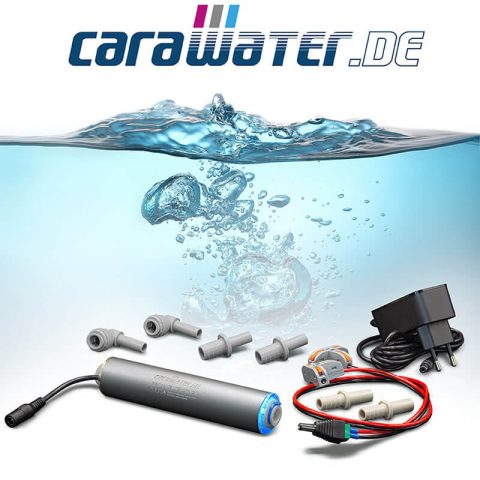

SCOPE OF DELIVERY

UV-C LED Reactor (Mini), 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 1 x adapter cable for power supply

ADDITIONAL INFORMATION

• German Engineered
• Certification: NSF Certified
• Temperature resistant: up to 40°C

BENEFITS

• Flow Rate: up to 3 L/pm
• Water disinfection – 100% chemical free
• Disinfection rates of up to 99.99%
• Environmentally friendly – no harmful disinfection by products
• Maintenance free
• >8,000 hours operation
• Unlimited switching cycles
• No lamp replacement requirements
• Low power consumption
