CARAWATER FILTRADOC PROTECT+ UV-C LED 6L/pm + FILTRADOC M (Limescale Removal)

UV-C LED (Midi)

240 mW high-performance UV-C LEDs

Constant, efficient wavelength of 265nm over the entire lifetime > 8,000 operating hours with unlimited switching cycles.

FILTRADOC M (Limescale Removal)

The filter head is equipped with an AQUASTOP at the water inlet. This allows for a change of filter without having to interrupt the mains’ water supply. The filter can be changed by turning the filter 1/3^rd of a turn inside of the filter head. Three sealing stages ensure permanent sealing.

The 2-micron sediment filtration stage consists of polypropylene thread and Microfield silver thread to protect against bacteria and biofilm whilst capturing sand, rust, mud and course particles.

The 0.5-micron activated carbon antibacterial filtration stage is made with 100% natural coconut shell carbon. Eliminating chemical compounds, heavy metals, hormones, and drug residues. The activated carbon also removes unpleasant odours and tastes from the filtered water.

The Limescale polyphosphate crystals reduces the hardness of the filtered water protecting your water lines, tanks, components and appliances

PRODUCT DETAILS

UV-C LED (Midi)

240 mW high-performance UV-C LEDs
Constant, efficient wavelength of 265nm over the entire lifetime
> 8,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency
On Demand on/off automatic switching via internal flow switch

12V, 24V  & 240V options available

FILTRADOC M (Limescale Removal)

Three Filter Stages

1st stage: Sediment filter for sand, rust and coarse particles
2nd stage: Activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3rd stage: Limescale reduction through polyphosphate granulate

PRODUCT SPECIFICATIONS

UV-C LED (Midi)

• UV Dose  40mj @ 6 L/pm
• Operating time up to >8,000 hours
• Flow rate 0.5 to 6 L/pm (at 3bar pressure)
• Internally water cooled
• Max Water Pressure: 3bar
• Temperature resistant: 4°C to 40°C
• Dimensions: 24cm x Ø 4cm
• Weight: 179g dry
• Temperature resistant: 4°C to 40°C
• Fittings: 10mm to 12mm

FILTRADOC M (Limescale Removal)

• Dimensions: 30cm x Ø 8cm
• Installation Dimensions: 35cm x Ø 8cm
• Capacity: Up to 20,000 litres
• Flow Rate: up to 6 L/pm. (at 3bar pressure)
• Weight 750g

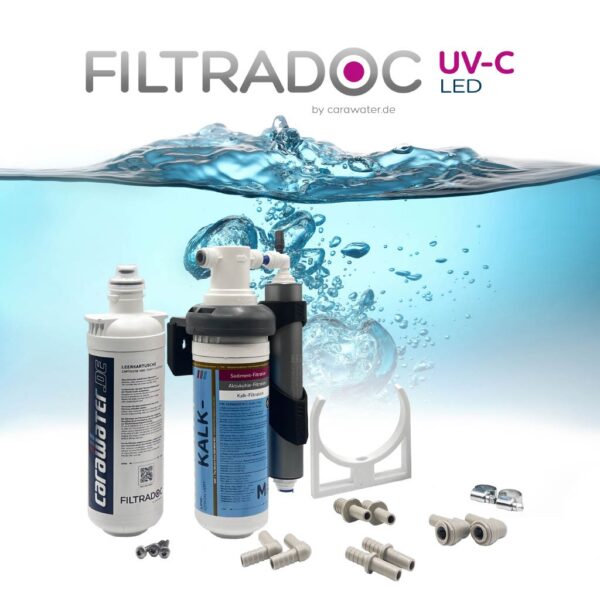

SCOPE OF DELIVERY

UV-C LED Reactor (Midi), Lightweight plastic housing, 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 1 x adapter cable for power supply, 2 x stainless steel hose clamps, 3 x fastening screws.

FILTRADOC M (Mineral+) with AQUASTOP filter head, filter holder, another empty cartridge for disinfection

ADDITIONAL INFORMATION

• German Engineered
• Easy opening and closing for filter replacement
• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Filter Life: up to 6,000 litres, depending on the degree of contamination

BENEFITS

• Easy opening and closing for filter replacement with AQUASTOP HEAD
• Removes sand, rust, mud and course organic and in organic particles.
• Eliminates chemical compounds, heavy metals, hormones, and drug residues
• Unpleasant odours and tastes removed from the filtered water.
• Reduces hardness of water protecting your water lines, tanks, components and appliances
• Microban® Antibacterial coating to housing
• Microfield Mesh to protect filter media against bacteria and biofilms
• Flow Rate: up to 6 L/pm
• Filter Life: up to 20,000 litres, depending on the degree of contamination with no time restriction
• Water disinfection – 100% chemical free
• Disinfection rates of up to 99.99%
• Environmentally friendly – no harmful disinfection by products
• Maintenance free
• >8,000 hours operation
• Unlimited switching cycles
• No lamp replacement requirements
• Low power consumption

Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.
