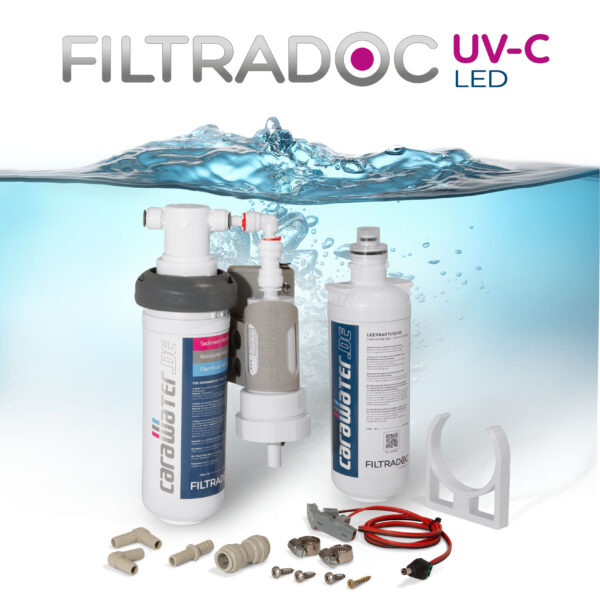

CARAWATER FILTRADOC PROTECT+ UV-C LED 8L/pm + FILTRADOC M

UV-C LED (8 L/pm)

2 x 200mW high-performance UV-C LEDs from Stanley Electric, Automotive compliant manufacturing / certification (AEC-Q102)

Constant, efficient wavelength of 265nm over the entire lifetime 10,000 operating hours with unlimited switching cycles.

FILTRADOC M

The filter head is equipped with an AQUASTOP at the water inlet. This allows for a change of filter without having to interrupt the mains’ water supply. The filter can be changed by turning the filter 1/3^rd of a turn inside of the filter head. Three sealing stages ensure permanent sealing.

The 2-micron sediment filtration stage consists of polypropylene thread and Microfield silver thread to protect against bacteria and biofilm whilst capturing sand, rust, mud and course particles.

The 0.5-micron activated carbon antibacterial filtration stage is made with 100% natural coconut shell carbon. Eliminating chemical compounds, heavy metals, hormones, and drug residues. The activated carbon also removes unpleasant odours and tastes from the filtered water.

The 0.1-micron Hollow Fiber Membrane Ultra Filtration stage traps germs, viruses, pollen, algae, bacteria and both organic and inorganic molecules from water.

PRODUCT DETAILS

UV-C LED (8 L/pm)

2 x 200mW high-performance UV-C LEDs from Stanley Electric
Automotive compliant manufacturing / certification (AEC-Q102)
Constant, efficient wavelength of 265nm over the entire lifetime
10,000 operating hours
Unlimited switching cycles with no effect on degradation of wavelength efficiency

12V, 24V options available

FILTRADOC M

Three Filter Stages

1st stage: Sediment filter for sand, rust and coarse particles
2nd stage: Activated carbon filter for chlorine, organic compounds, heavy metals, drug residues and microplastics
3rd stage: Ultrafiltration membrane, 99.99% reduction of bacteria, E. Coli bacteria, Legionella

PRODUCT SPECIFICATIONS

UV-C LED (8 L/pm)

• UV Dose 10 @ 6L/pm, 22 @ 2.3L/pm, 40 @ 1.2L/pm
• Operating time up to 10,000 hours
• Flow rate 0.5 to 8 L/pm (at 3bar pressure)
• Internally water cooled
• Power Consumption: 6.8w
• Max Water Pressure: 8bar
• Temperature resistant: 4°C to 40°C
• Dimensions: 24cm x 10cm x 12cm (L x W x H)
• Weight: 970g dry
• Weight: 1,020g
• Temperature resistant: 4°C to 40°C
• IP Rating: IP65
• Fittings: 10mm to 12mm

FILTRADOC M

• Two-piece housing including filter head equipped with AQUASTOP
• Dimensions: 30cm x Ø 8cm
• Installation Dimensions: 35cm x Ø 8cm
• Flow Rate: up to 7 L/pm. (at 3bar pressure)
• Weight 750g
• Filter Life: up to 30,000 litres, depending on the degree of contamination with no time restriction

SCOPE OF DELIVERY

UV-C LED (8 L/pm), Lightweight plastic housing, 2 x adapters for 10mm hose, 2 x adapters for 12mm hose, 2 x 90° connectors, 2 x adapter cables for power supply, 2 x stainless steel hose clamps, 4 x fastening screws.

FILTRADOC M with AQUASTOP filter head, filter holder, another empty cartridge for disinfection

ADDITIONAL INFORMATION

• German Engineered
• Easy opening and closing for filter replacement
• Certification: NSF Certified
• Temperature resistant: up to 40°C
• Filter Life: up to 30,000 litres, depending on the degree of contamination

BENEFITS

• Easy opening and closing for filter replacement with AQUASTOP HEAD
• Removes sand, rust, mud and course organic and in organic particles.
• Eliminates chemical compounds, heavy metals, hormones, and drug residues
• Unpleasant odours and tastes removed from the filtered water.
• Microban® Antibacterial coating to housing
• Microfield Mesh to protect filter media against bacteria and biofilms
• Flow Rate: up to 8 L/pm
• Filter Life: up to 30,000 litres, depending on the degree of contamination with no time restriction
• Water disinfection – 100% chemical free
• Disinfection rates of up to 99.999%
• Environmentally friendly – no harmful disinfection by products
• Maintenance free
• 10,000 hours operation
• Unlimited switching cycles
• No lamp replacement requirements
• Low power consumption

Flush filter cartridge for 5-10 minutes prior to first use or after extended periods on non-use.
